Quiet Motor Design
Inside limit switch
UL, TUV, CE, RoHs compliant
Adjustable speed
Housing color option（Black or Gray）
| Performance data | |
| Load capacity | max. 1000 N push max. 1000 N pull |
| Adjustment speed | ax. 55 mm/sec. |
| Stroke length | max. 500 mm (+/- 2 mm) |

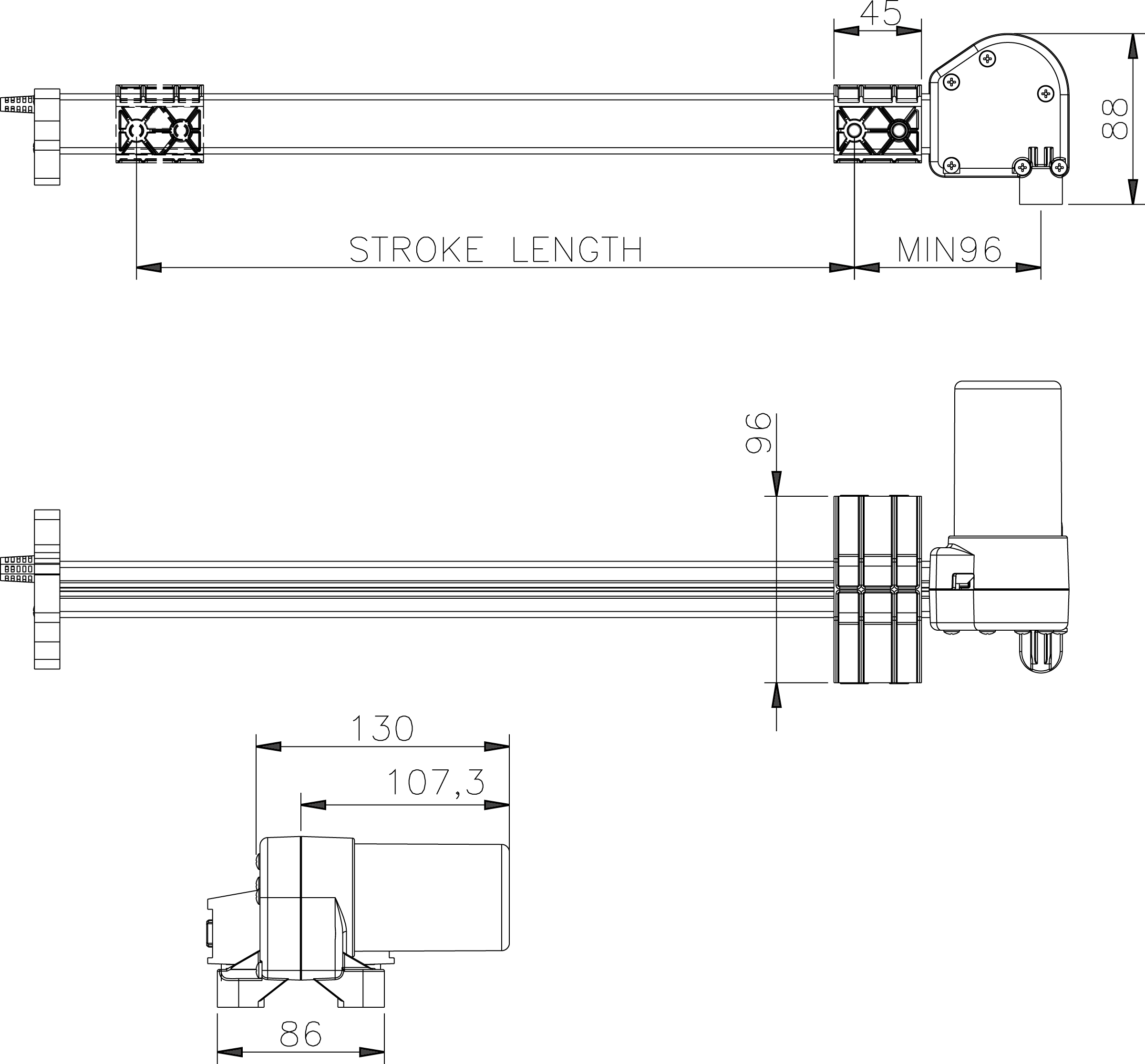

| Fitting dimension | min. 96 mm + stroke (+/- 2 mm) |
| Noise | ≤50 dBA |
| Safety Certification | UL, TUV, CE, RoHs |
| Further data | |
| Protection type | IP20 |
| Relative humidity | 30% – 75% |
| Ambient temperatureRelative humidity | +10°C - +40°C |
can be used in the lift chair mechanism
