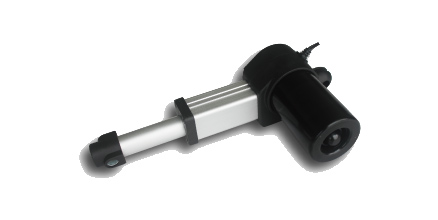

Headrest Motor

  • General
  • Tech.data
  • Tech.drawing
  • Application
图片名
图片名 图片名 图片名

Quiet Motor Design

Inside limit switch

UL, TUV, CE, RoHs compliant

Adjustable speed

Housing color option(Black or Gray)

Standard configurations

Performance data
Load capacity max. 1500 N push
max. 1500 N pull
Adjustment speed ax. 18 mm/sec.
Stroke lengthmax. 50 mm (+/- 2 mm)
Fitting dimensionmin. 184 mm + stroke (+/- 2 mm)
Noise≤50 dBA
Safety Certification UL, TUV, CE, RoHs
Further data
Protection type IP20
Relative humidity 30% – 75%
Ambient temperatureRelative humidity +10°C - +40°C

can be used in the lift chair mechanism

001.

002.

003.
